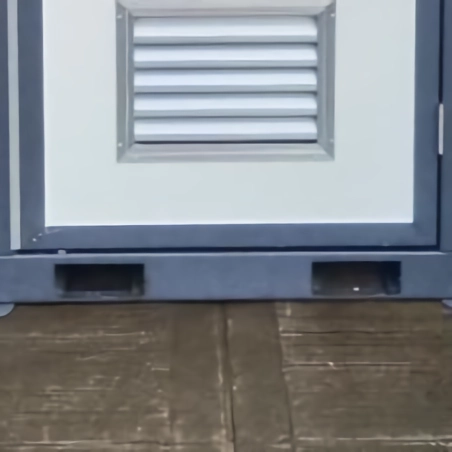

Forklift pockets
Built-in forklift pockets assist planned handling and repositioning.

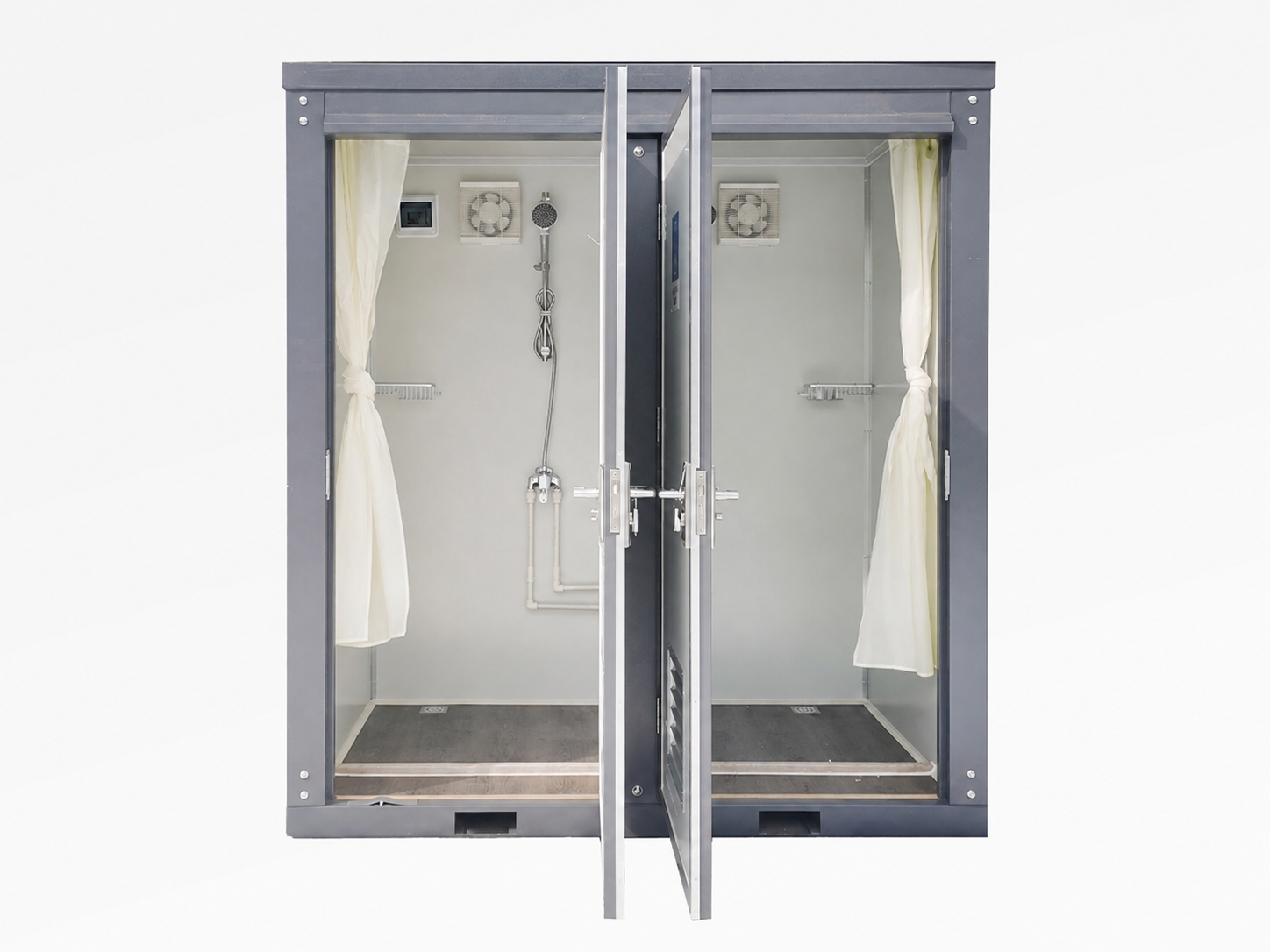

Two private shower cubicles
Built for the site. Planned for the space.
A relocatable double-shower module with two separately entered cubicles, shower fittings, floor drainage, ventilation and lighting.

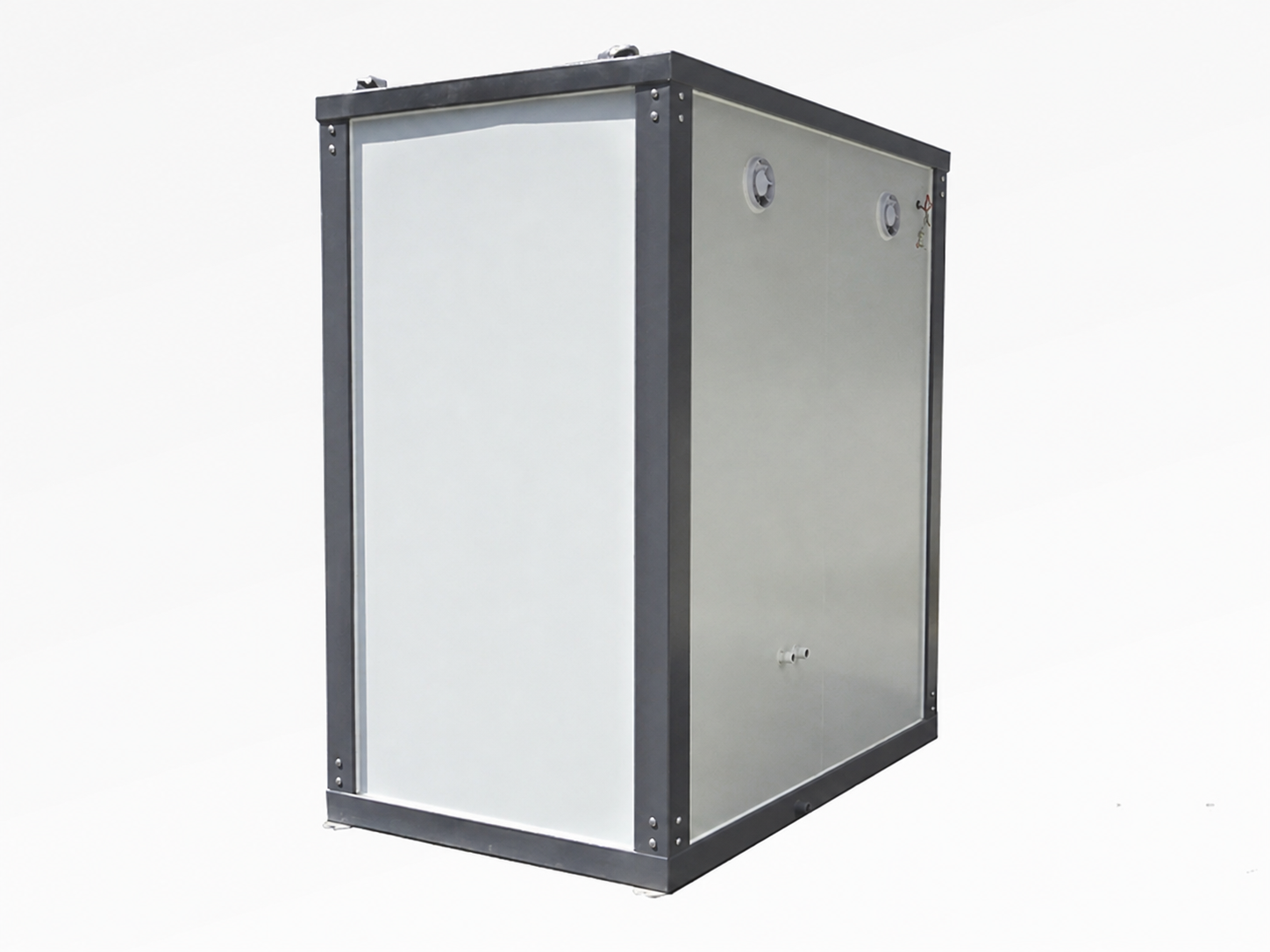

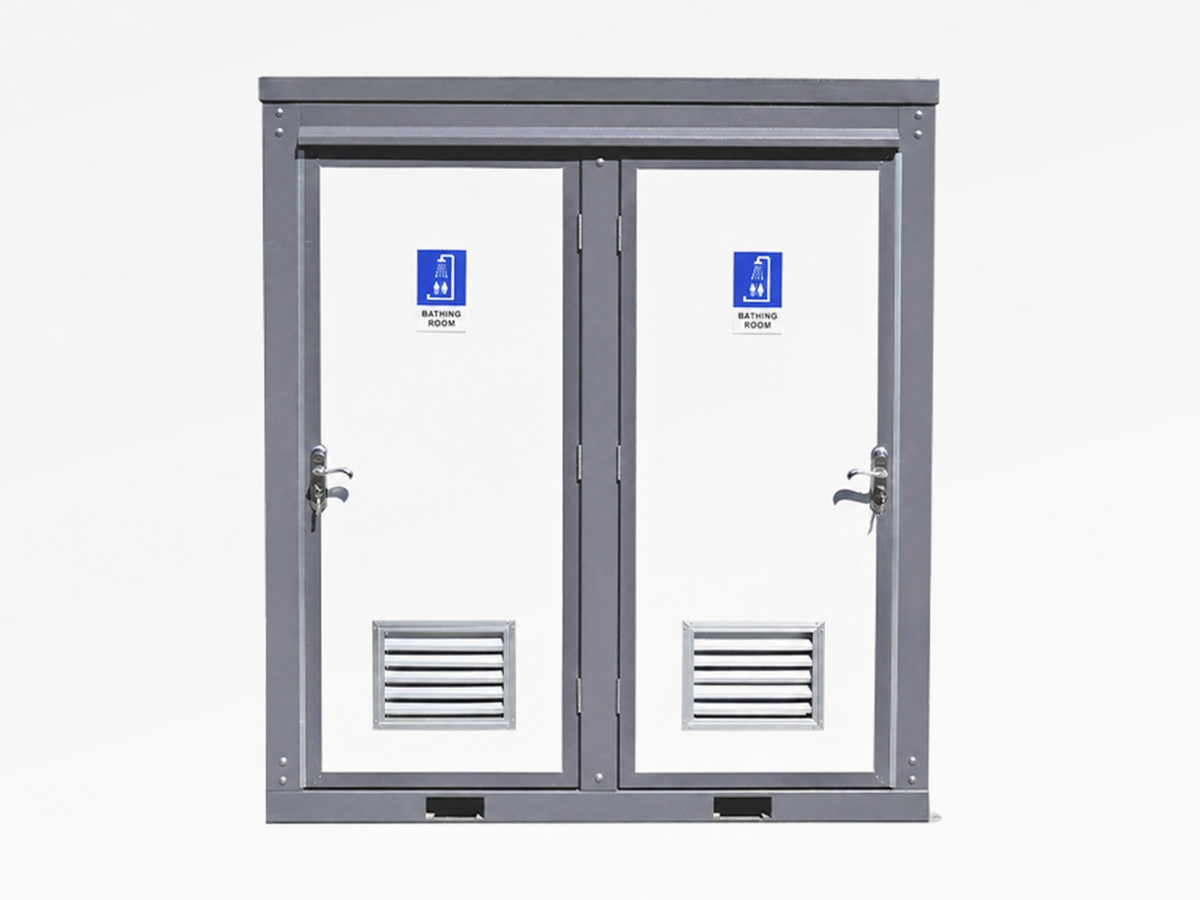

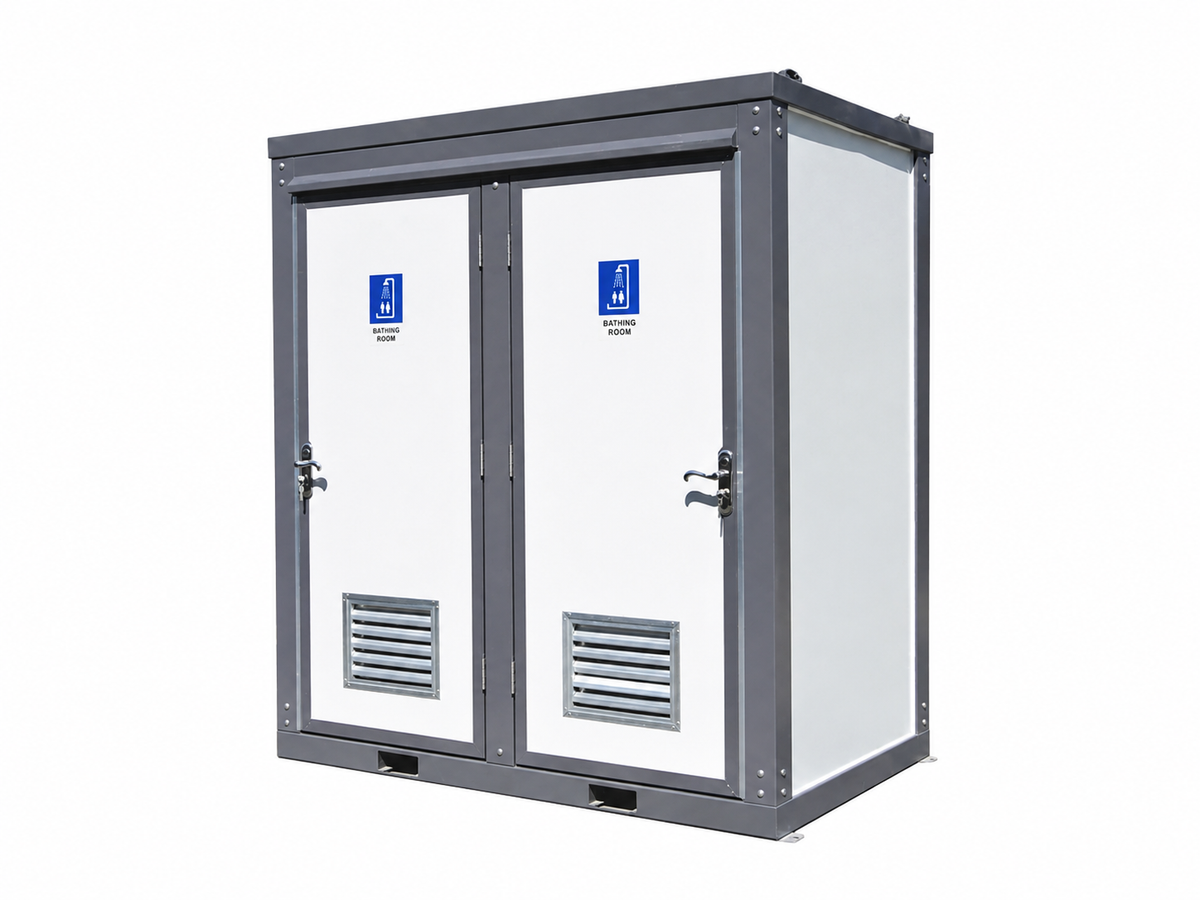

Product views
See every detail

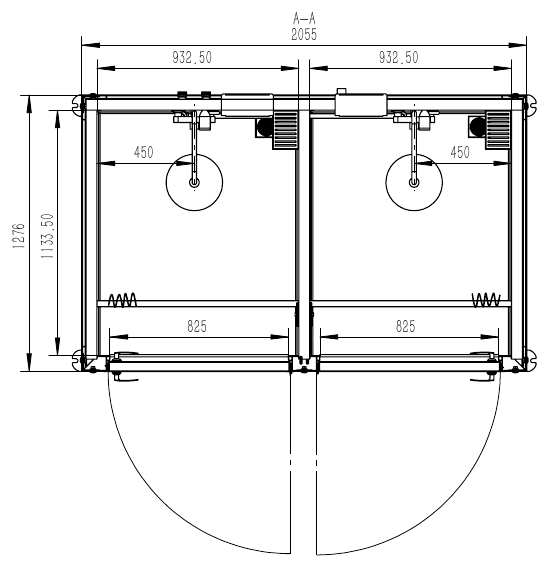

Dimensions & layout
- Length
- 2075 mm
- Width
- 1325 mm
- Height
- 2320 mm
- Approx. weight
- 480 kg
Dimensions and layout are indicative. Confirm the final drawing before foundations, service placement or consent work.

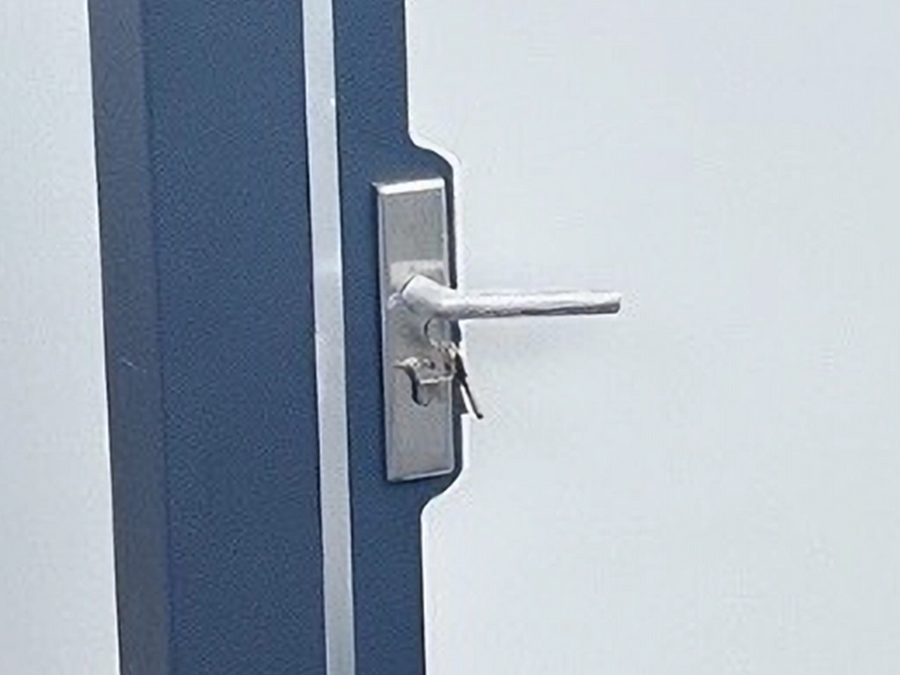

Lockable door
Lockable external door hardware for privacy and security.
Key features
- Two separately entered shower cubicles

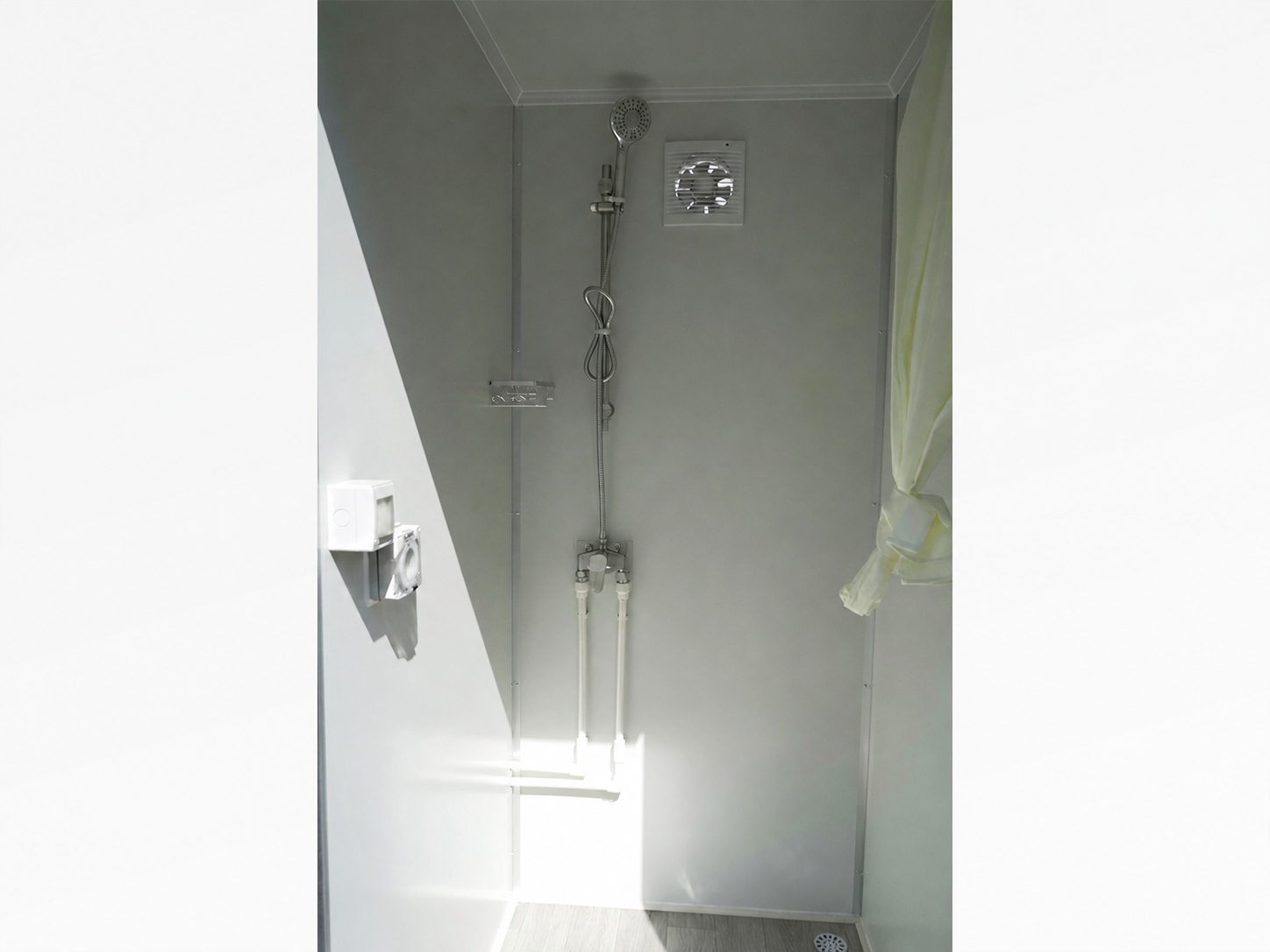

- Shower fittings and floor drainage shown in both rooms
- Factory electrical fit-out with ventilation, lighting and circuit protection
- Factory plumbing fit-out with water and drain connection points
- Steel frame and insulated composite panels
- Anti-slip and wear-resistant flooring
Suitable for
- Construction and civil worksites

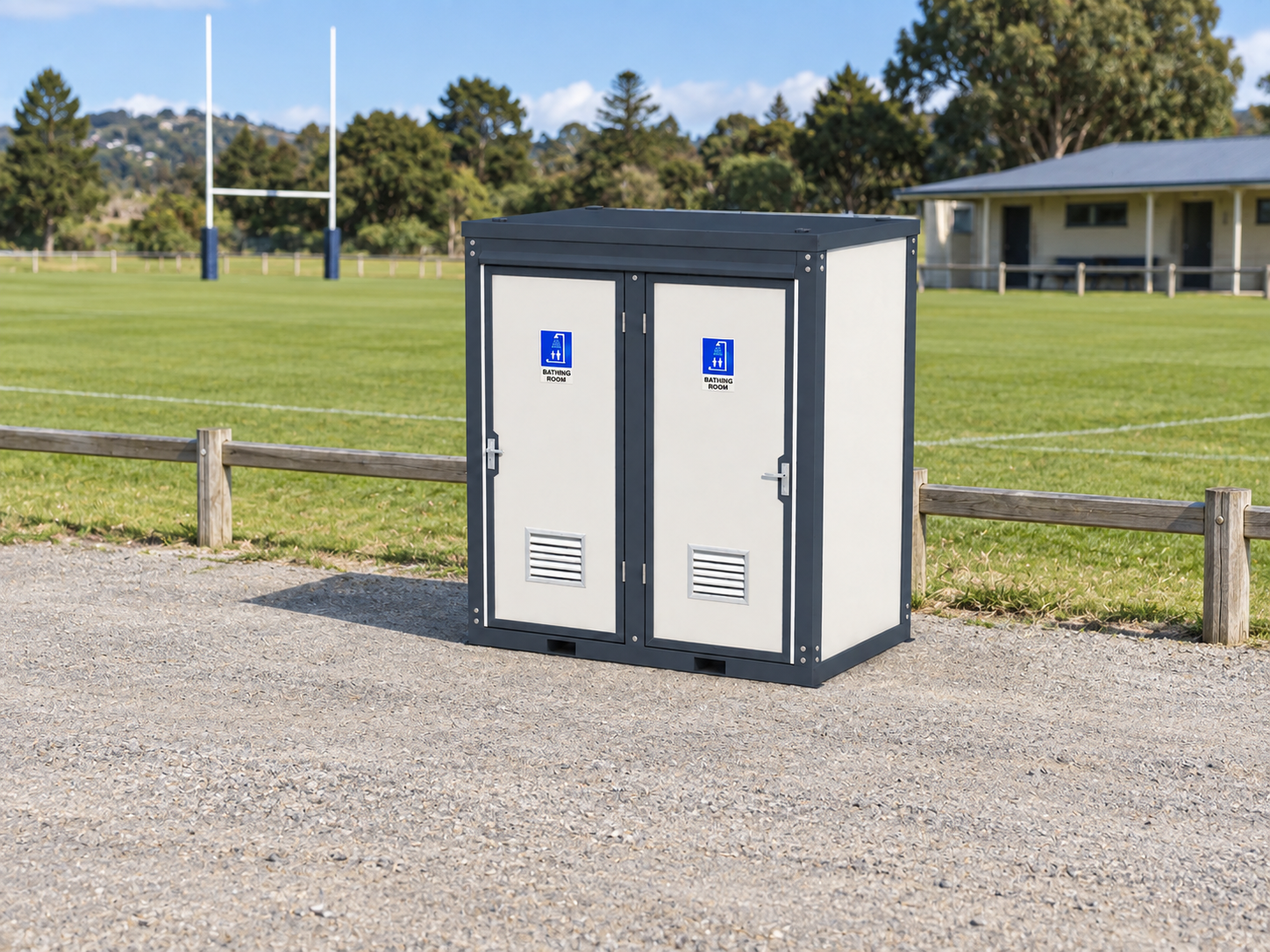

- Events and temporary facilities
- Rural, industrial and commercial sites
- Locations needing two private showers with external services
Practical benefits
Two-user capacity
Separate entrances allow both shower rooms to operate independently.
Purpose-specific layout
No toilet occupies the pictured shower floor area.
Compact shared shell
Two private shower rooms fit within one transportable module.
Specifications
- Dimensions
- 2075 mm × 1325 mm × 2320 mm
- Approx. weight
- 480 kg
- Configuration
- Two separate shower cubicles
- Structure
- Q235 steel frame and steel roof
- Walls and roof
- 50 mm EPS composite panels
- Floor
- 12 mm rigid PVC plus 3 mm anti-slip finish
- Water inlet
- 20 PPR pipe with 1/2-inch connection
- Drain outlet
- Ø40 general drain listed
- Electrical

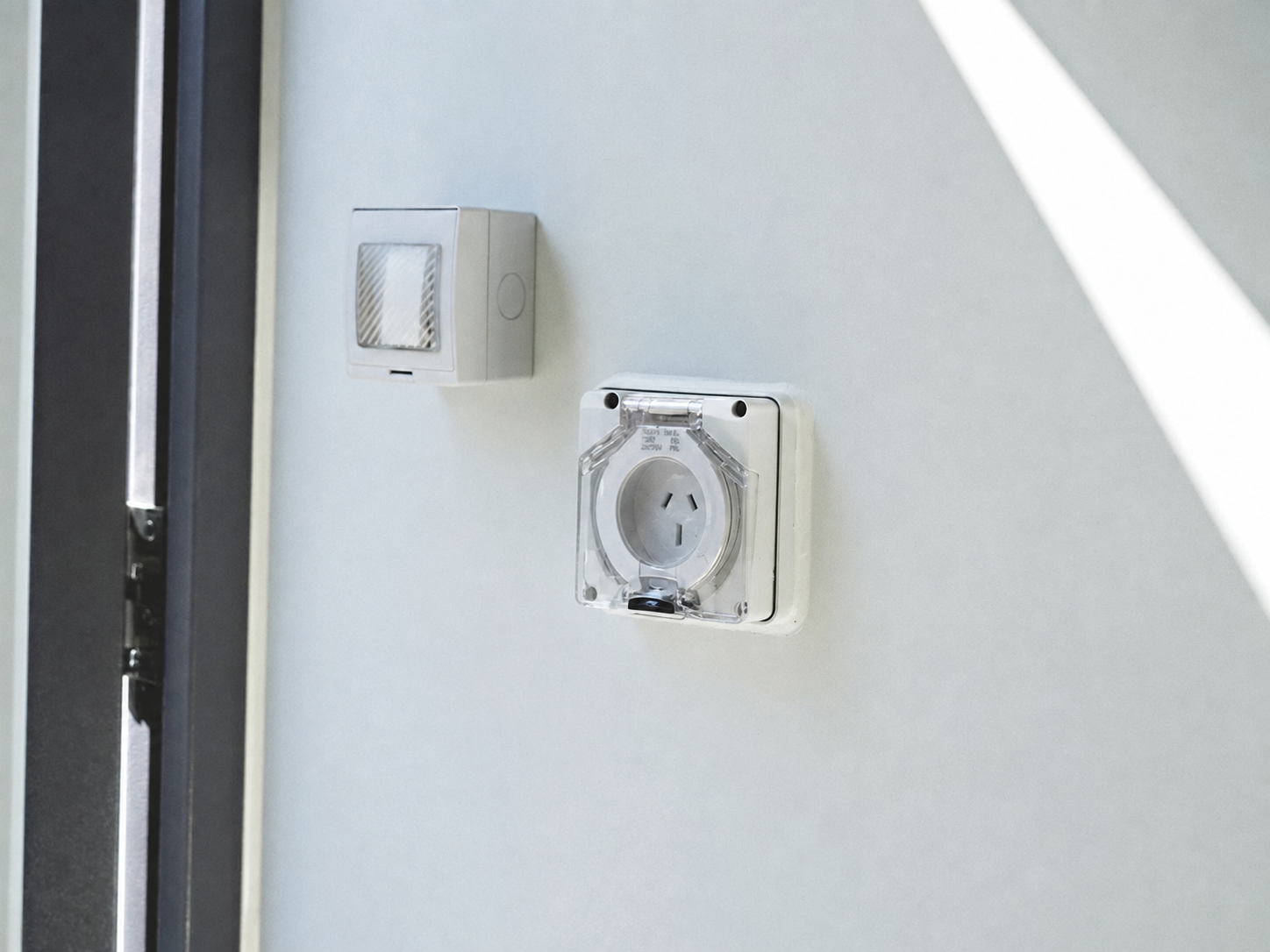

- concealed wiring, 16 A breaker, 32 A aviation socket, lighting and fan
