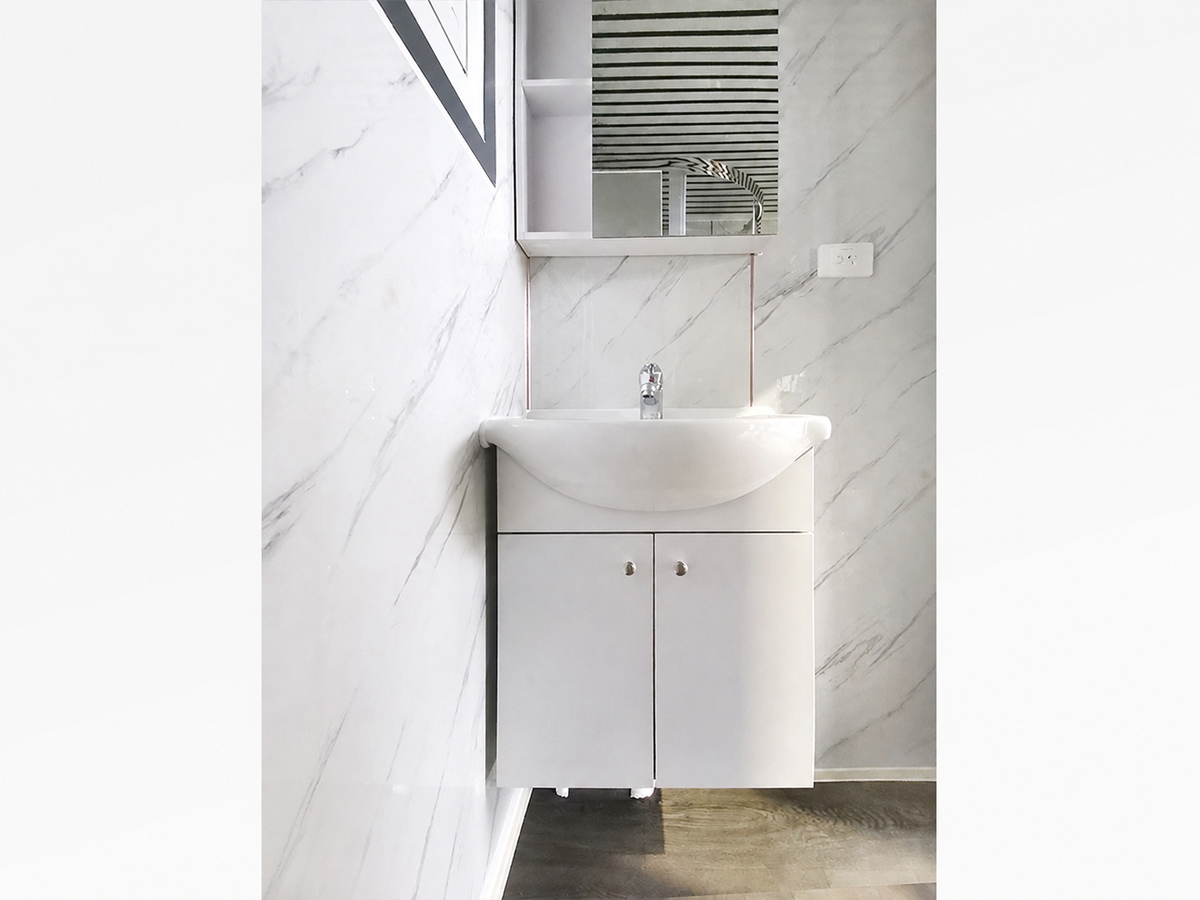

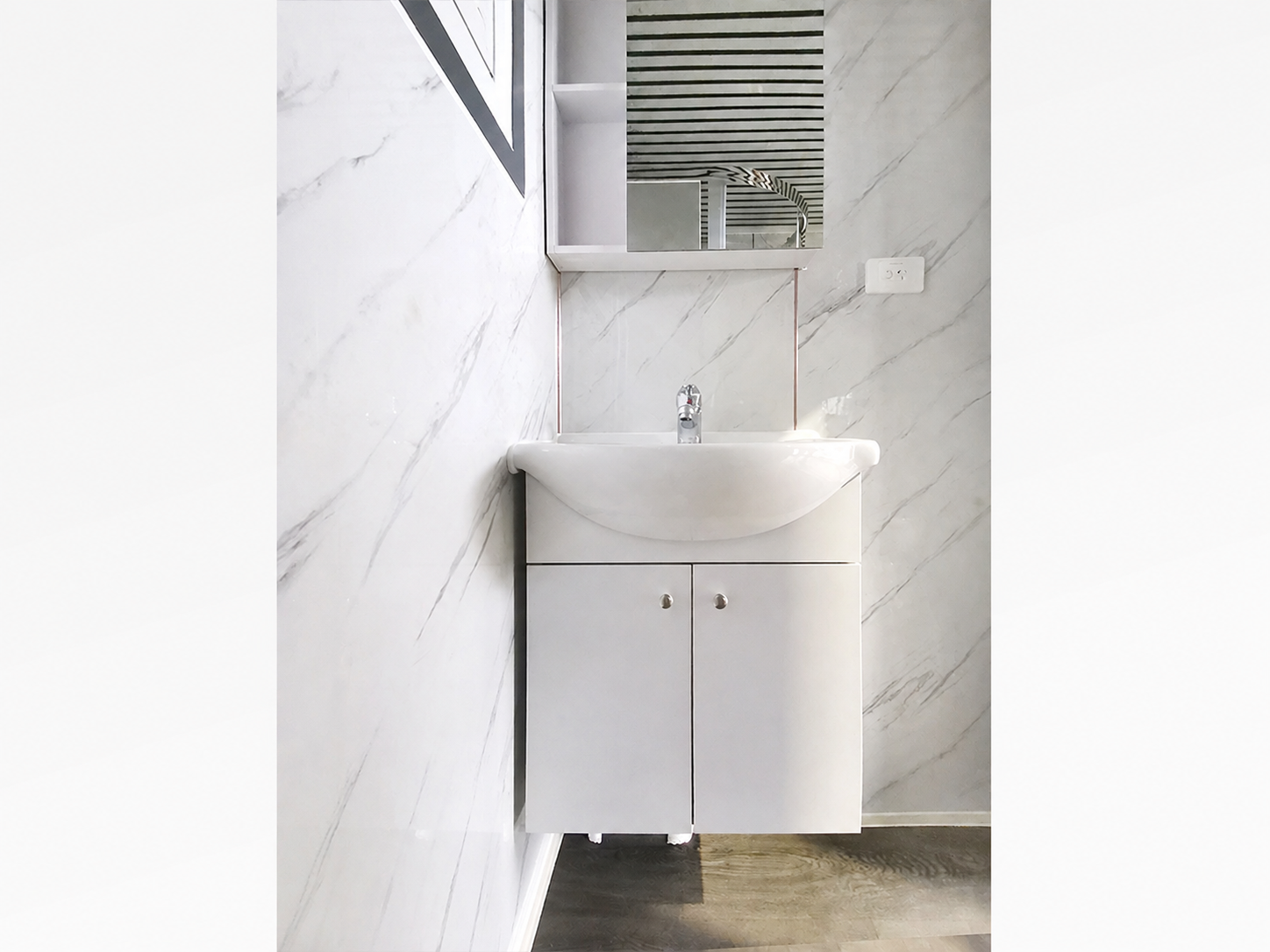

Hand basin
Fitted hand basin and storage cabinet.

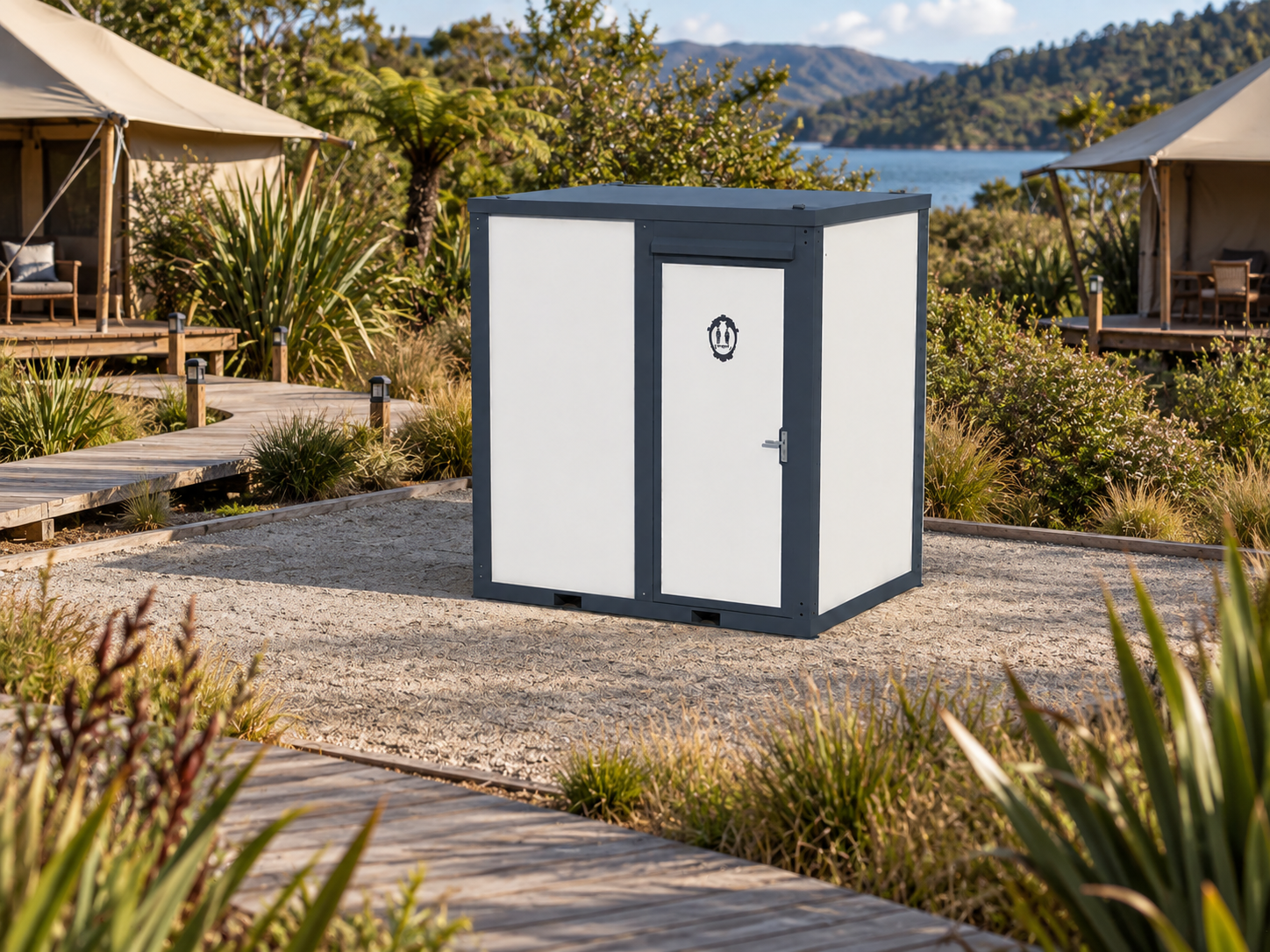

Compact all-in-one bathroom
Built for the site. Planned for the space.

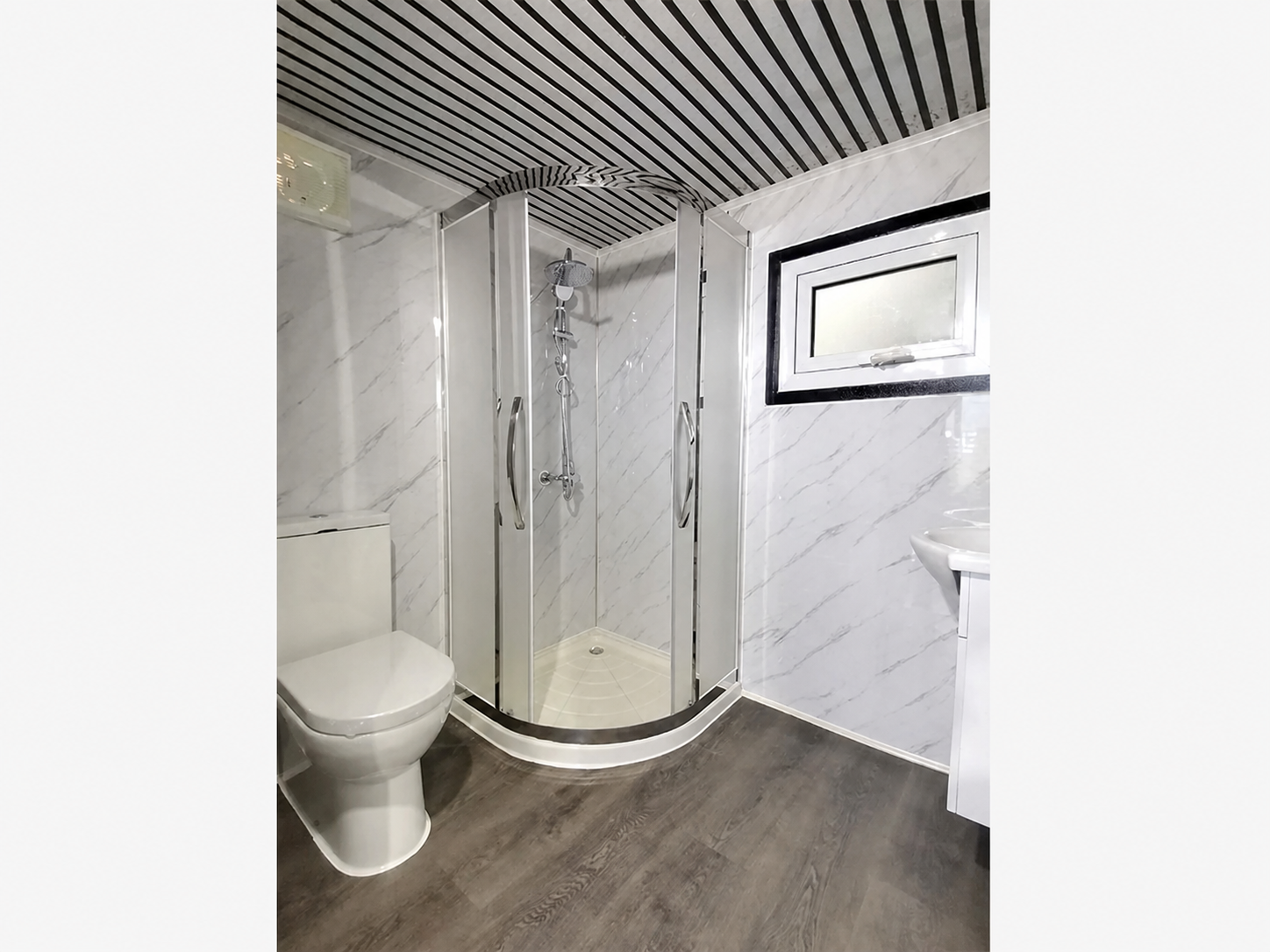

A one-room bathroom combining a ceramic toilet, cabinet basin and separate 900 × 900 mm curved shower enclosure with tray.
Product views
See every detail
Dimensions & layout
- Length
- 2180 mm
- Width
- 1620 mm
- Height
- 2354 mm
- Approx. weight
- 481 kg
Dimensions and layout are indicative. Confirm the final drawing before foundations, service placement or consent work.

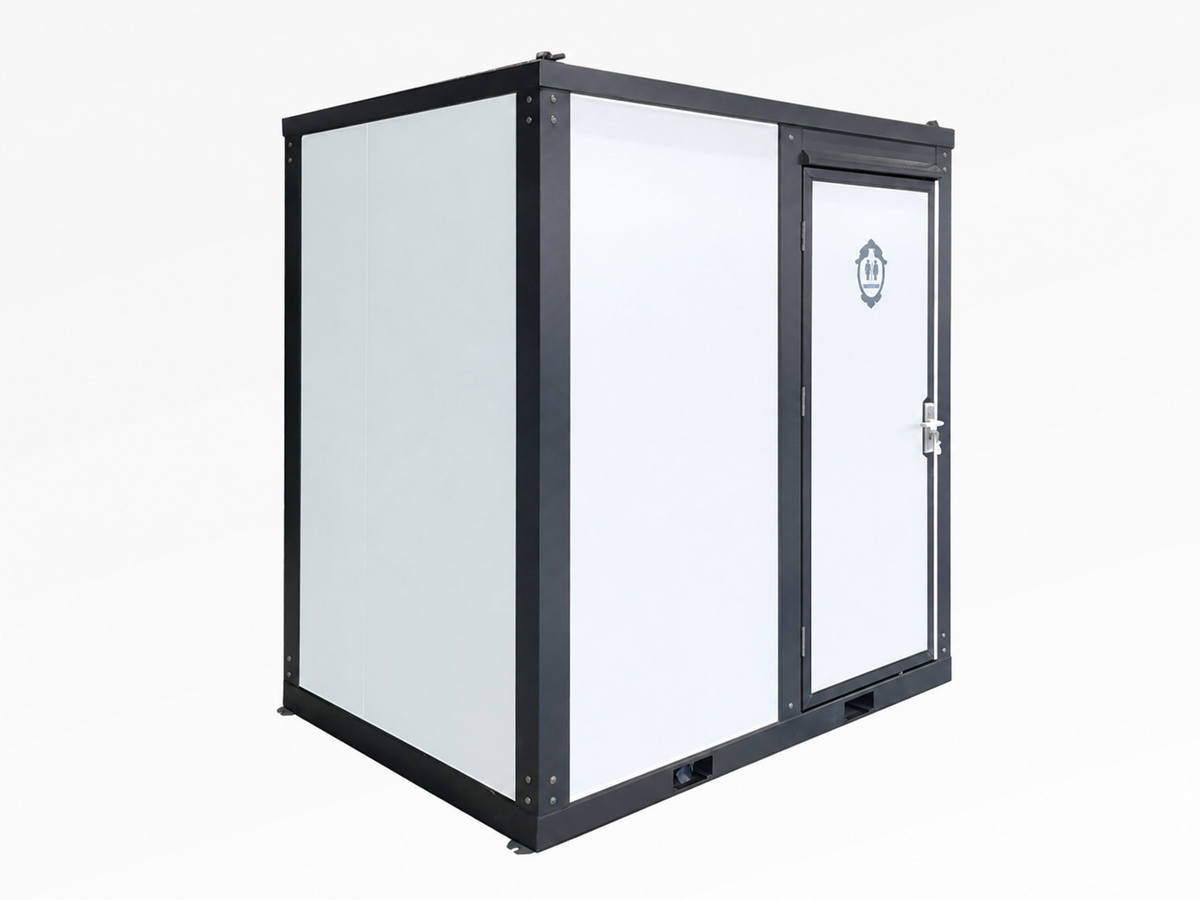

Forklift pockets
Built-in forklift pockets assist planned handling and repositioning.

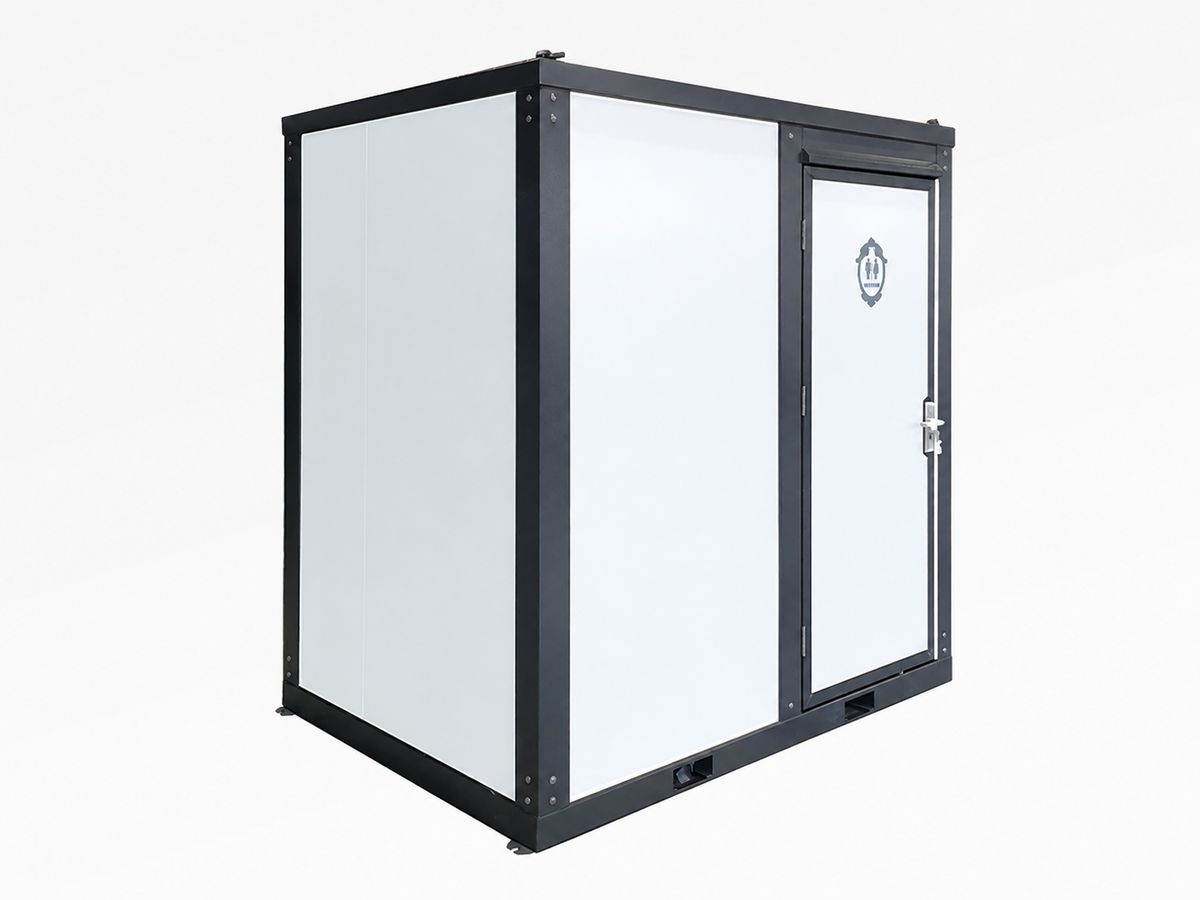

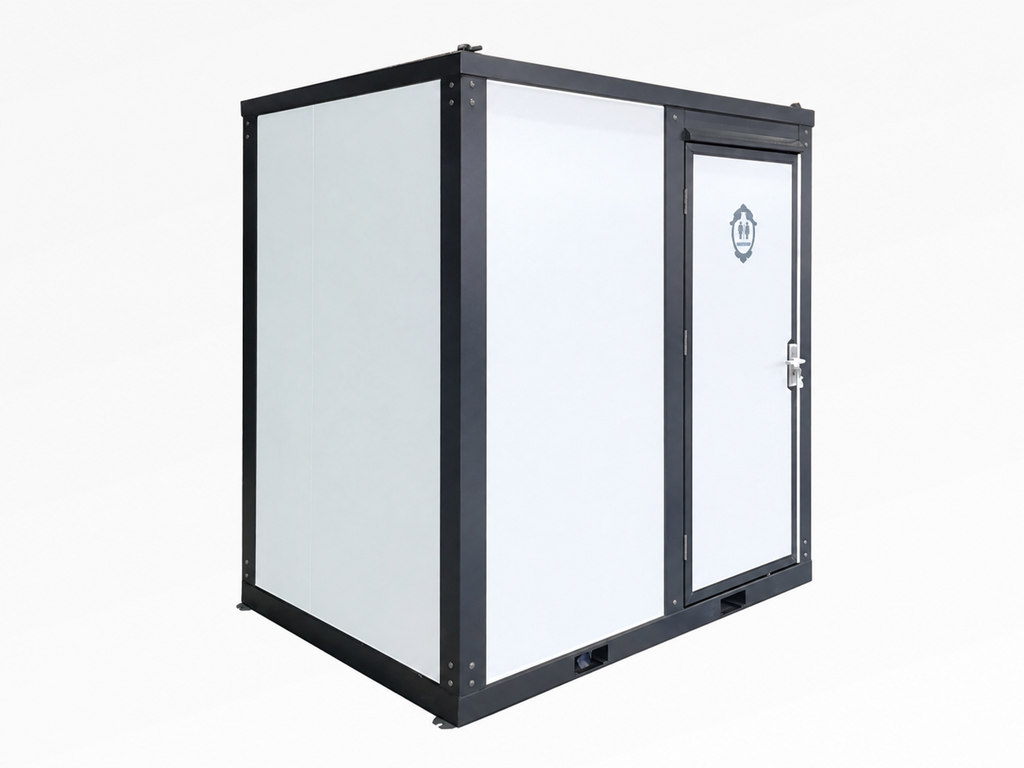

Lockable door
Lockable external door hardware for privacy and security.
Key features

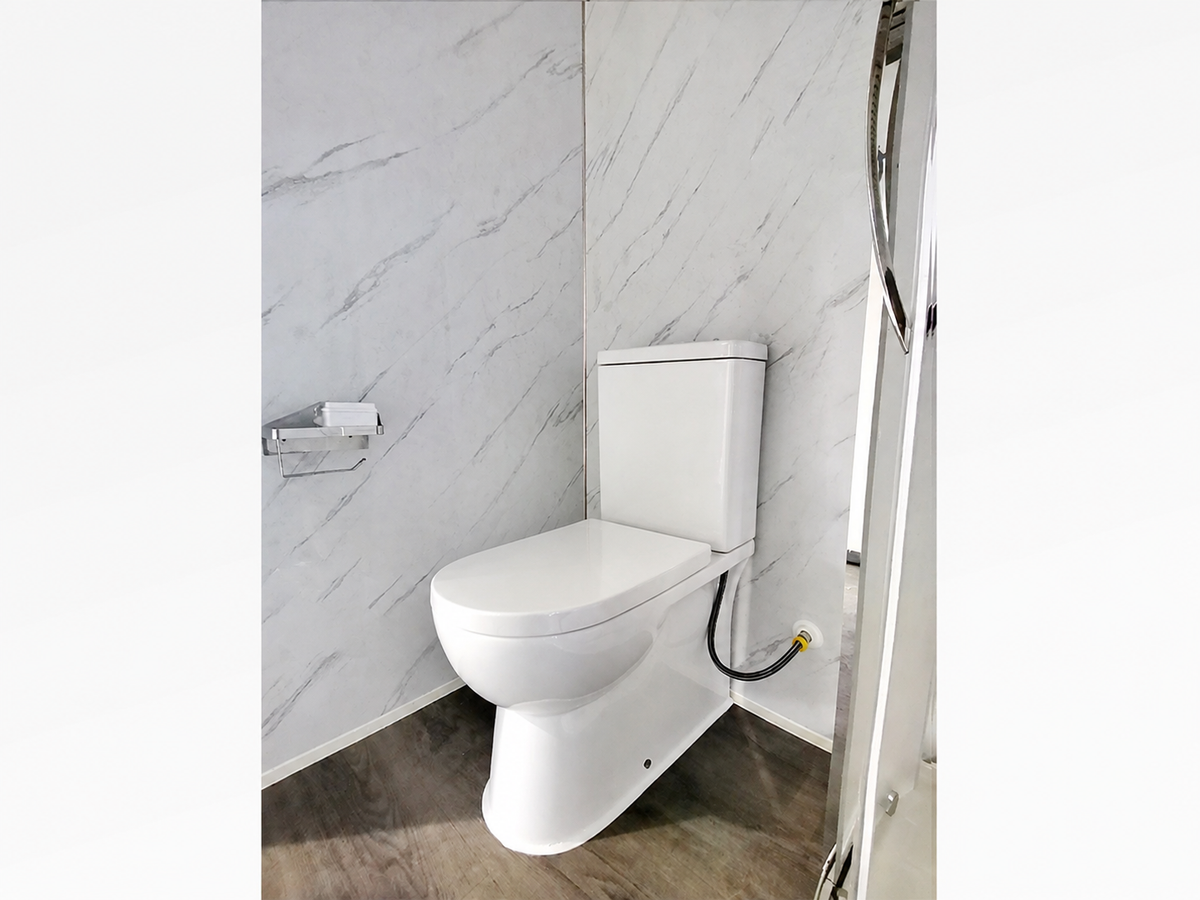

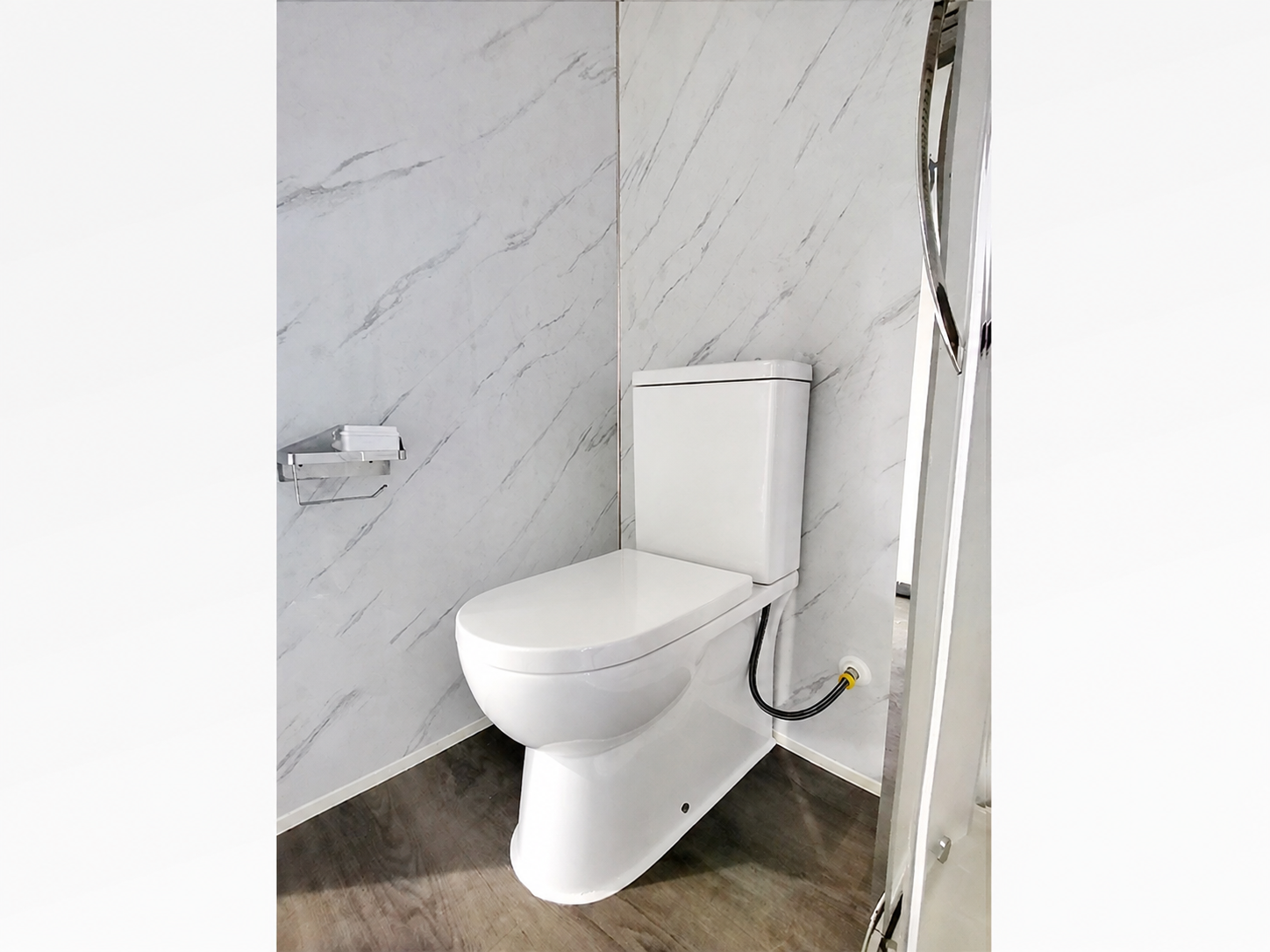

- Ceramic toilet and 550 mm cabinet basin

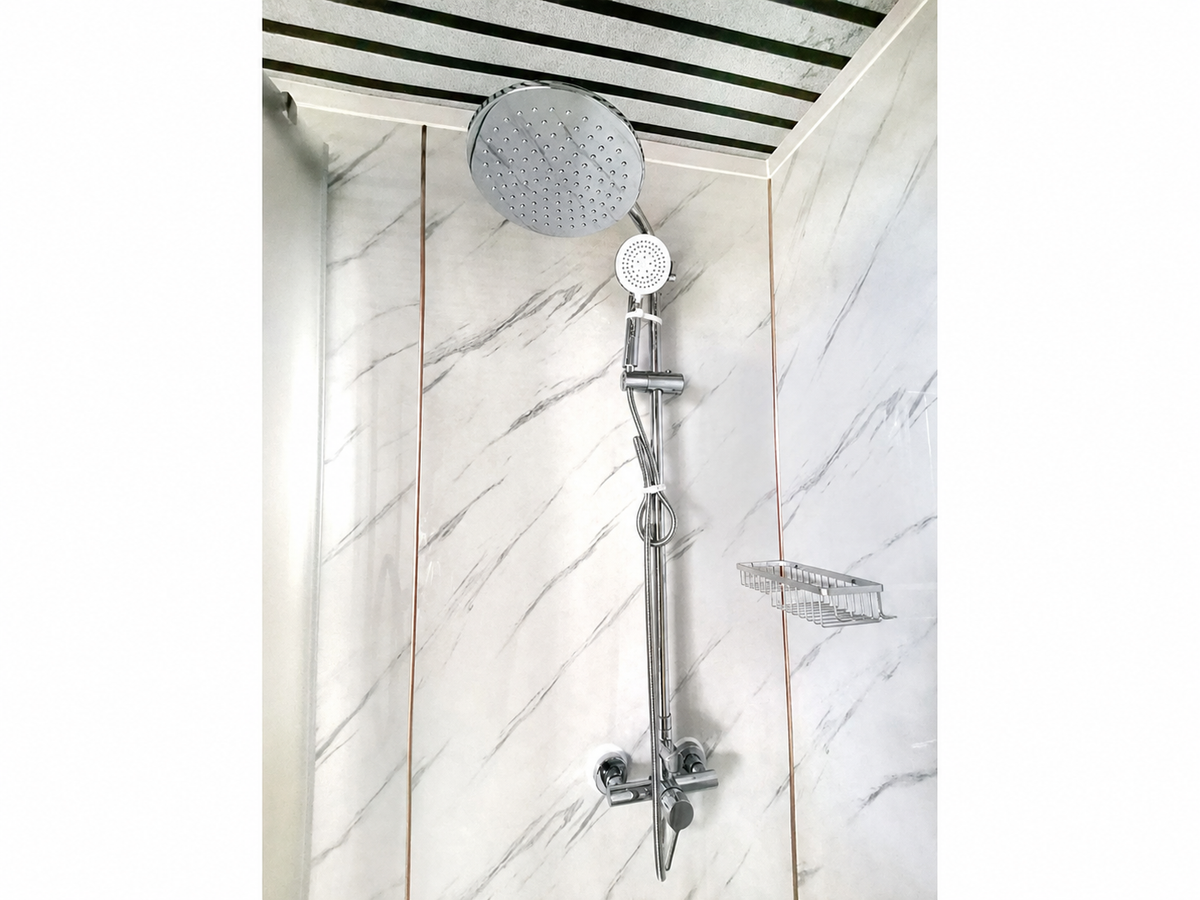

- 900 × 900 mm curved acrylic sliding shower enclosure with ABS tray

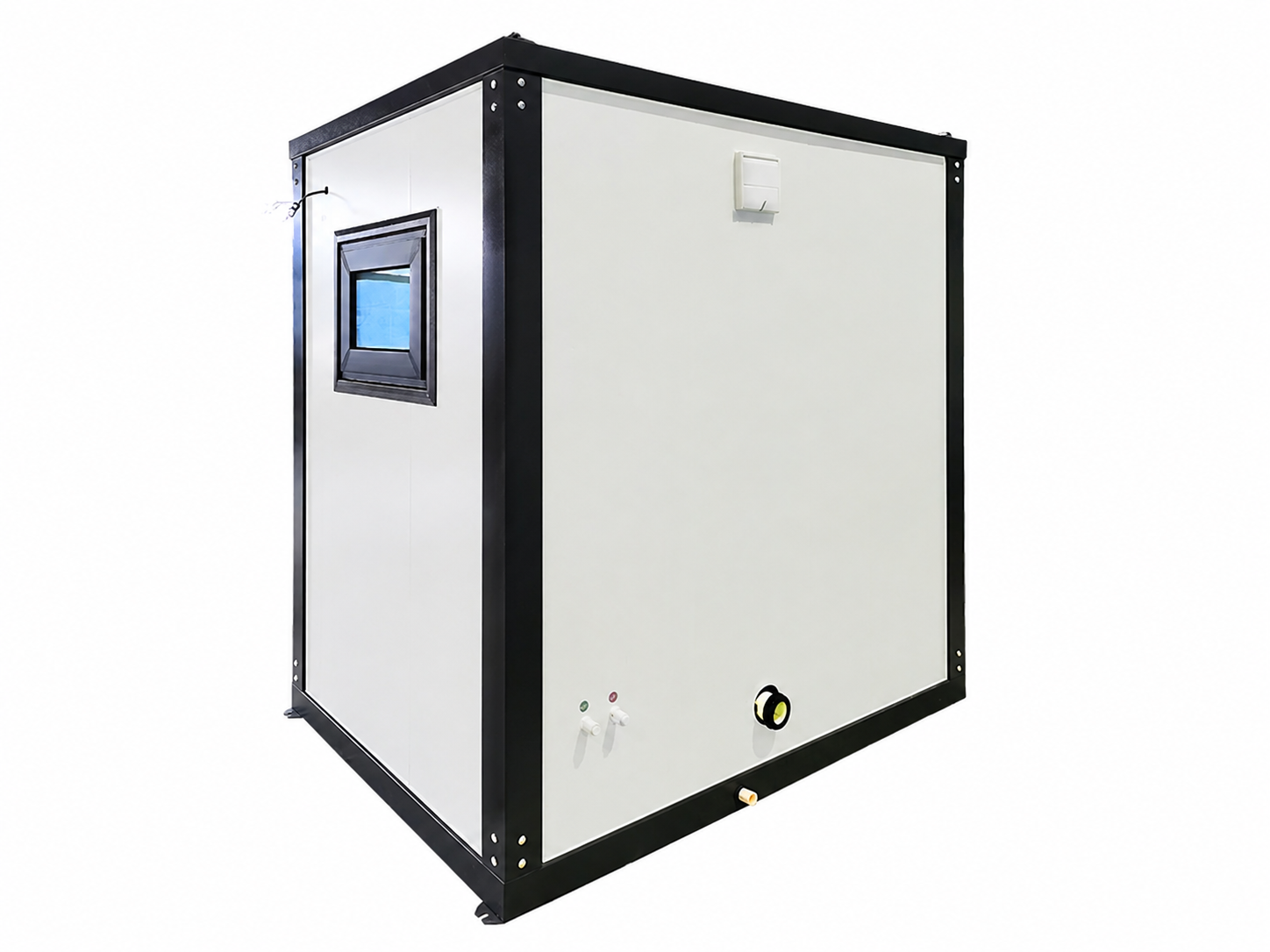

- Mirror cabinet, window and ventilation fan
- Factory electrical fit-out with lighting, breaker, switches and socket
- Factory plumbing fit-out with water and waste connection points
- Steel frame, insulated walls and anti-slip flooring
Suitable for
- Construction and civil worksites
- Temporary staff accommodation
- Rural and industrial sites
- Projects wanting a separated shower wet zone in a compact module
Practical benefits

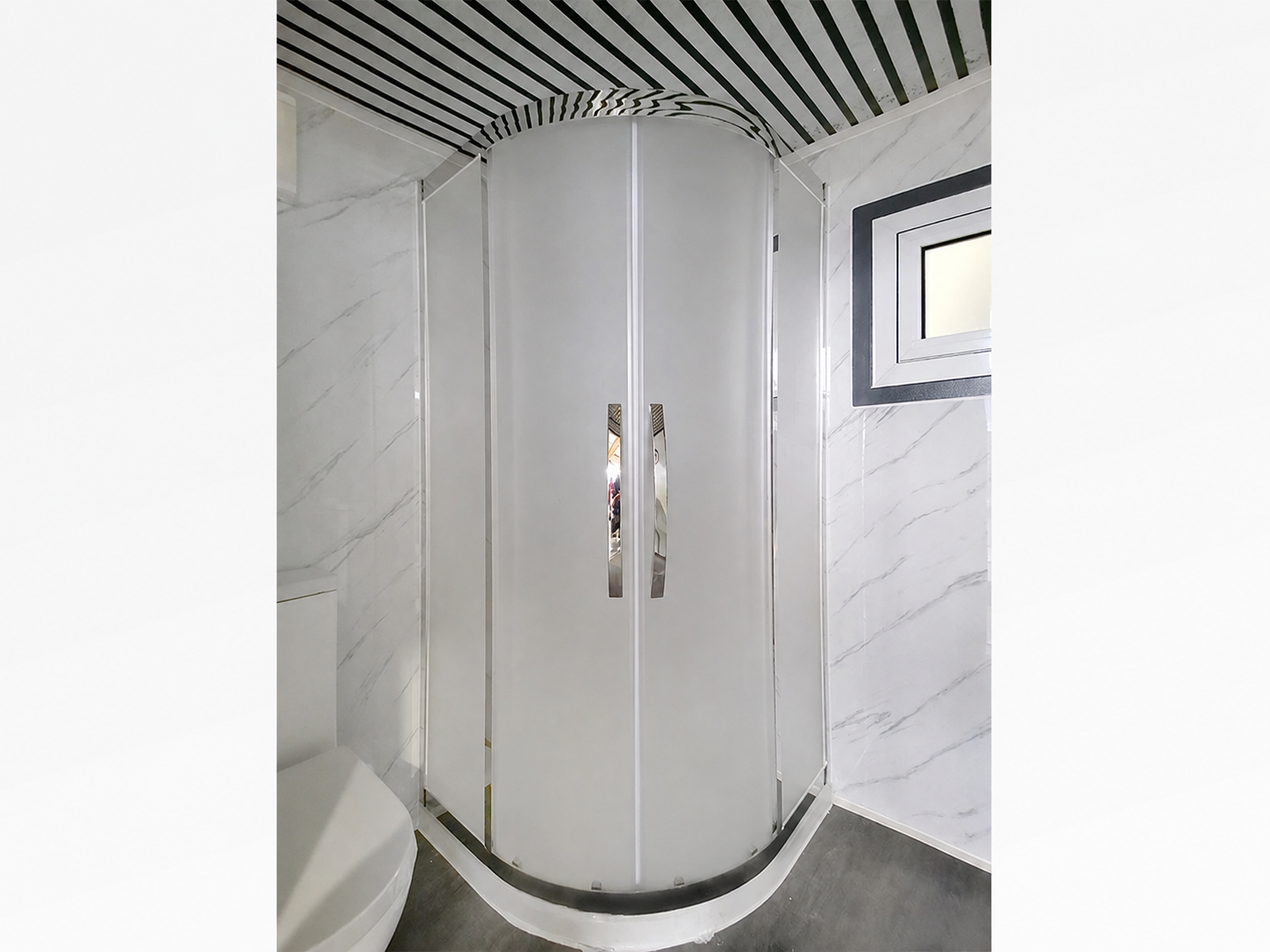

Separated shower zone
Curved enclosure and tray separate showering from the toilet/basin area.
Three functions, one module
Provides showering, toilet and handwashing in one relocatable shell.
Cabinet storage
Basin and mirror cabinets add practical bathroom storage.
Specifications
- Dimensions
- 2180 mm × 1620 mm × 2354 mm
- Approx. weight
- 481 kg
- Configuration
- Toilet, cabinet basin and enclosed shower
- Structure
- Q235 steel frame and steel roof
- Walls
- 50 mm EPS composite panels with UV protective board
- Shower
- 900 × 900 mm acrylic sliding enclosure with ABS tray
- Window
- 690 × 500 mm aluminium window
- Water inlet
- 20 PPR pipe with 1/2-inch connection
- Drain outlets
- Ø40 drain; Ø90 toilet discharge
- Electrical
- concealed wiring, 16 A breaker, 32 A aviation socket, 18 W light and fan
