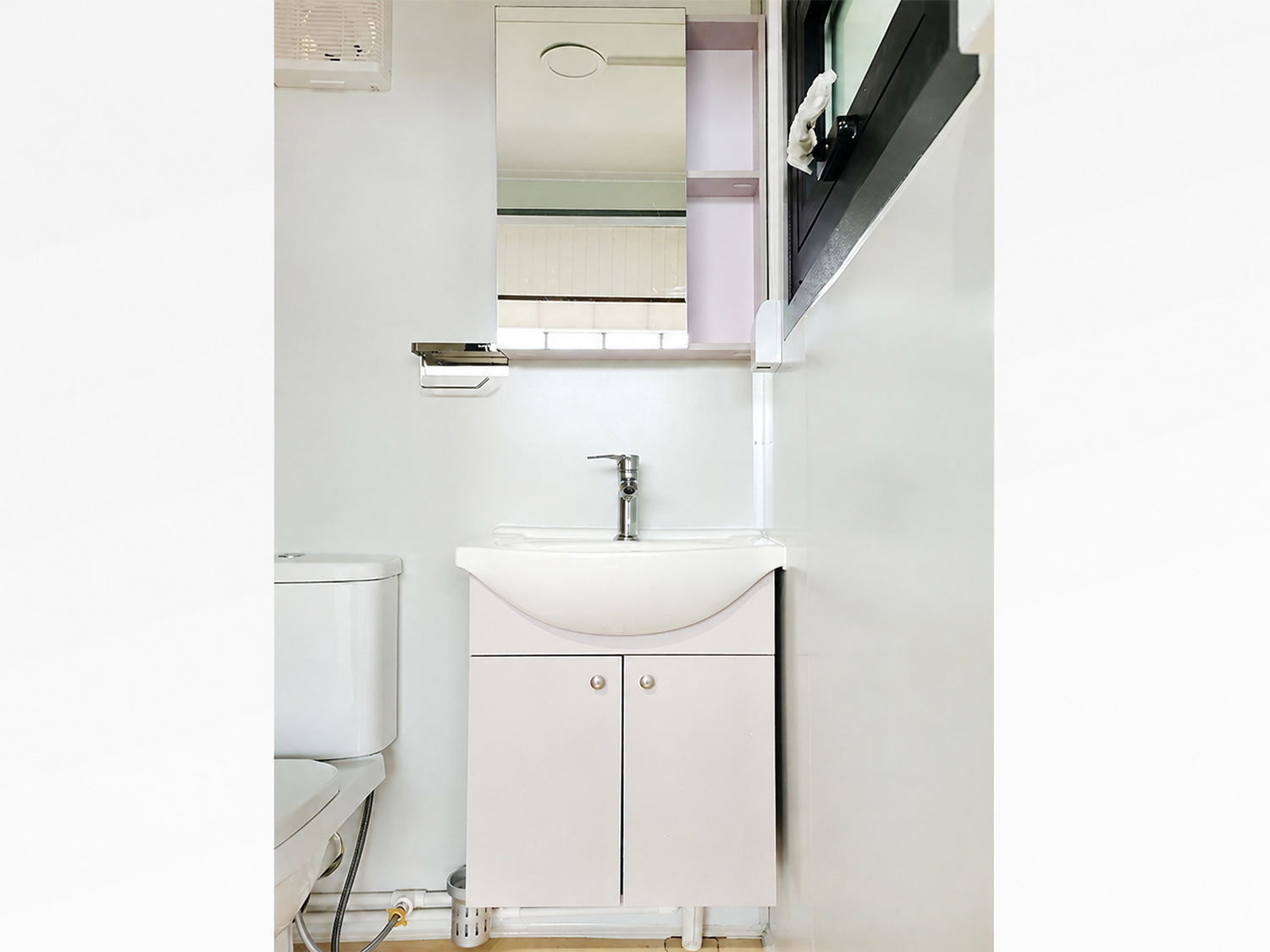

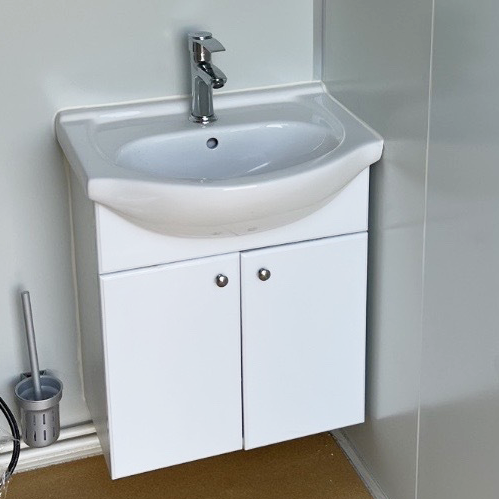

Hand basin
Fitted hand basin and storage cabinet.

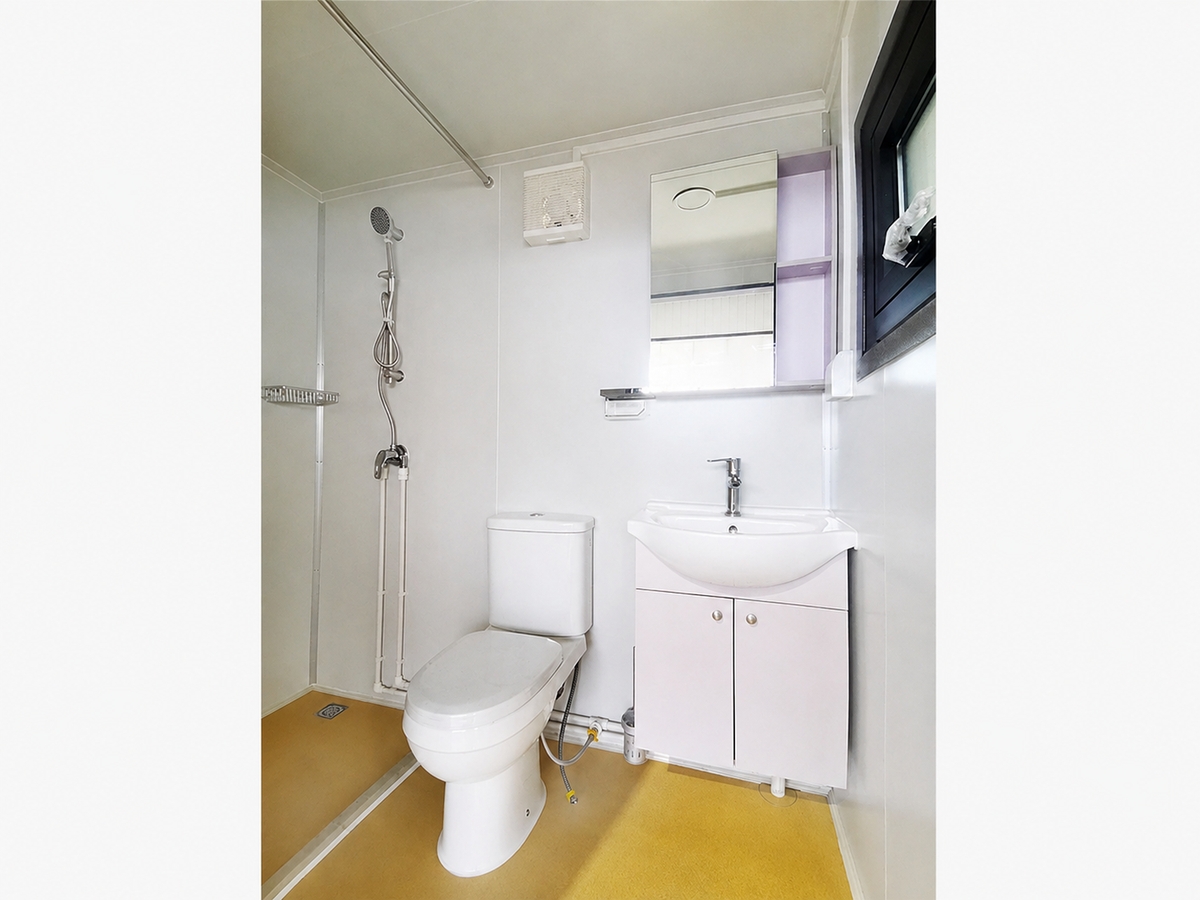

Open-plan toilet, basin and shower
Built for the site. Planned for the space.
A compact one-room bathroom with a ceramic toilet, cabinet basin and unenclosed shower head.
Product views
See every detail

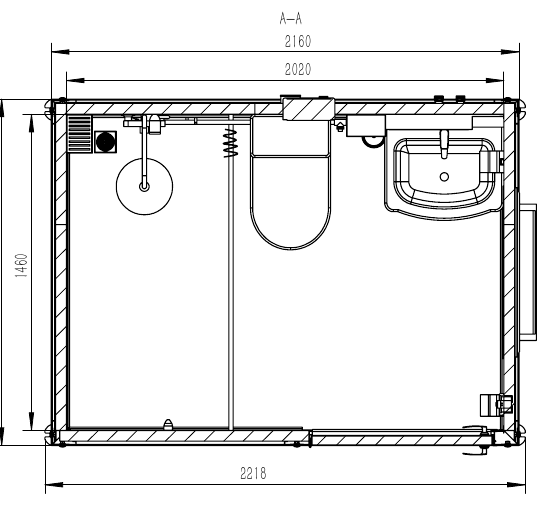

Dimensions & layout
- Length
- 2180 mm
- Width
- 1620 mm
- Height
- 2354 mm
- Approx. weight
- 481 kg
Dimensions and layout are indicative. Confirm the final drawing before foundations, service placement or consent work.

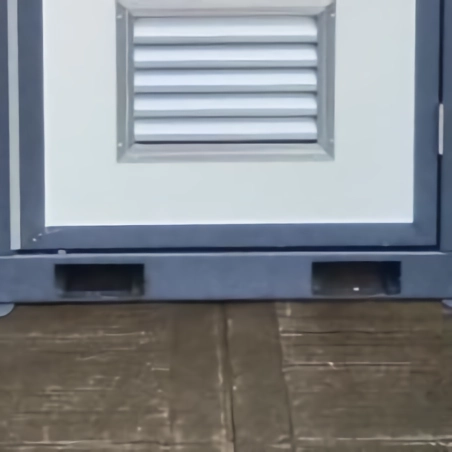

Forklift pockets
Built-in forklift pockets assist planned handling and repositioning.

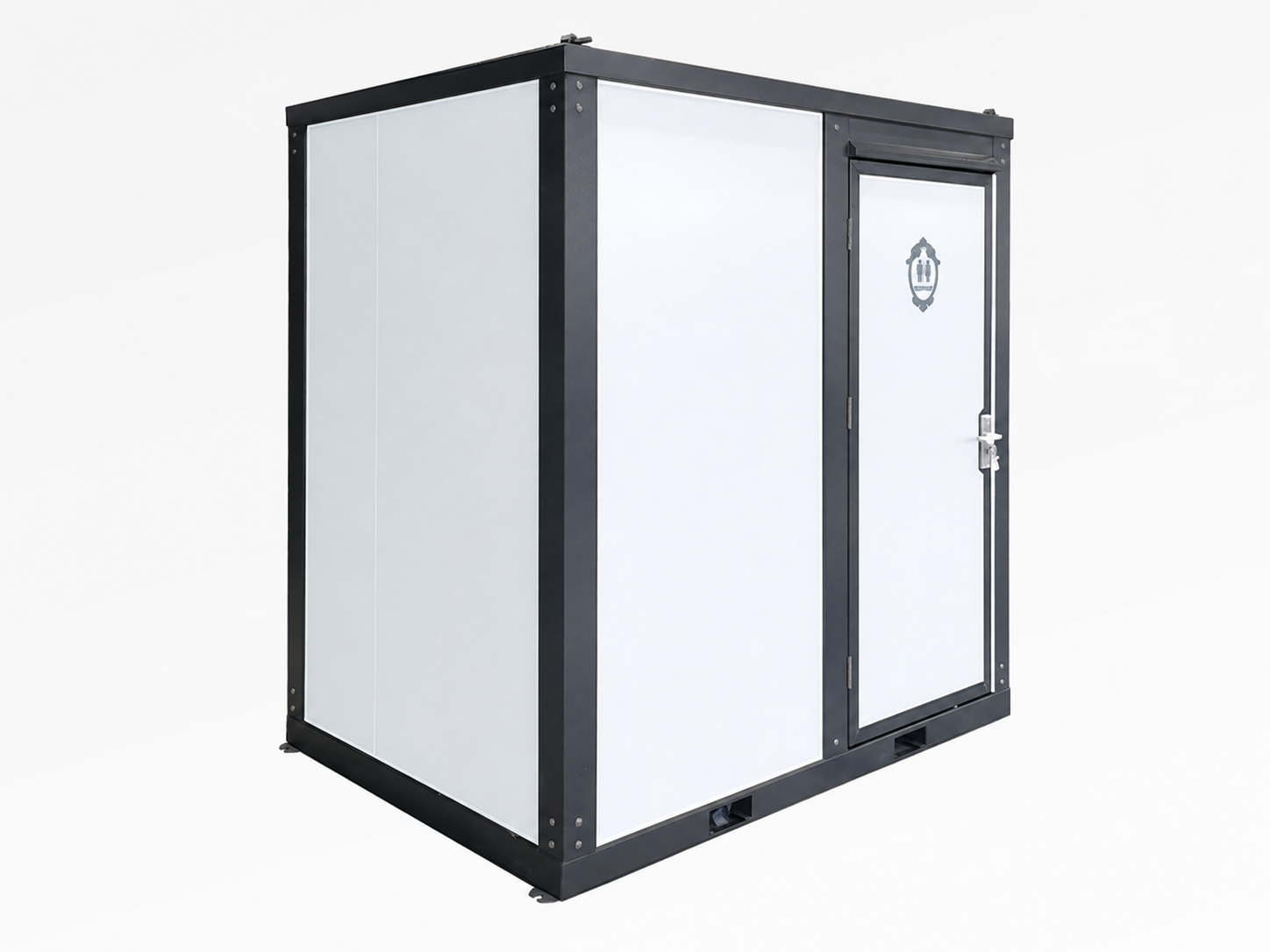

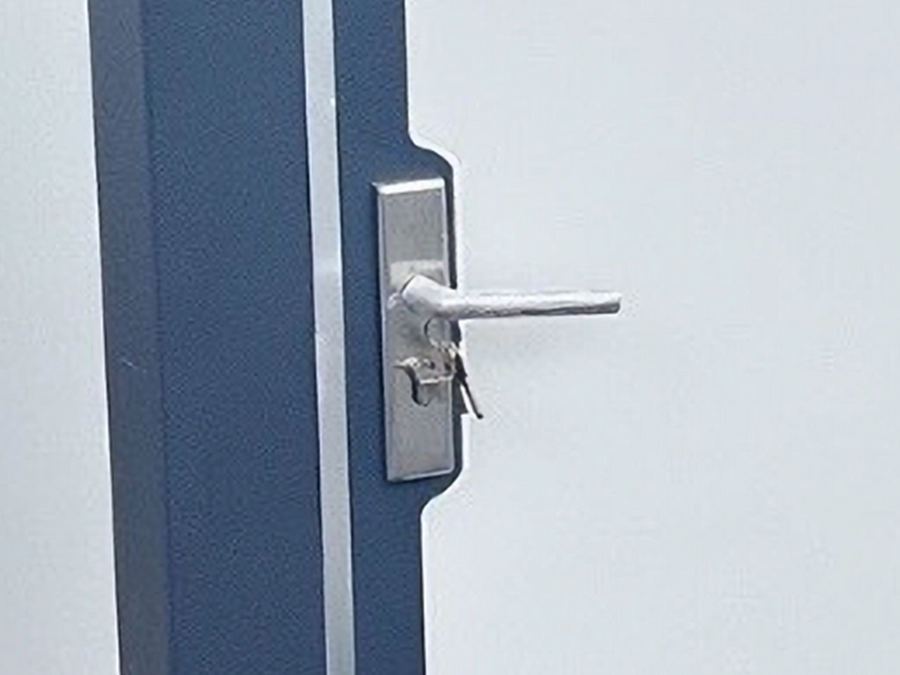

Lockable door
Lockable external door hardware for privacy and security.
Key features

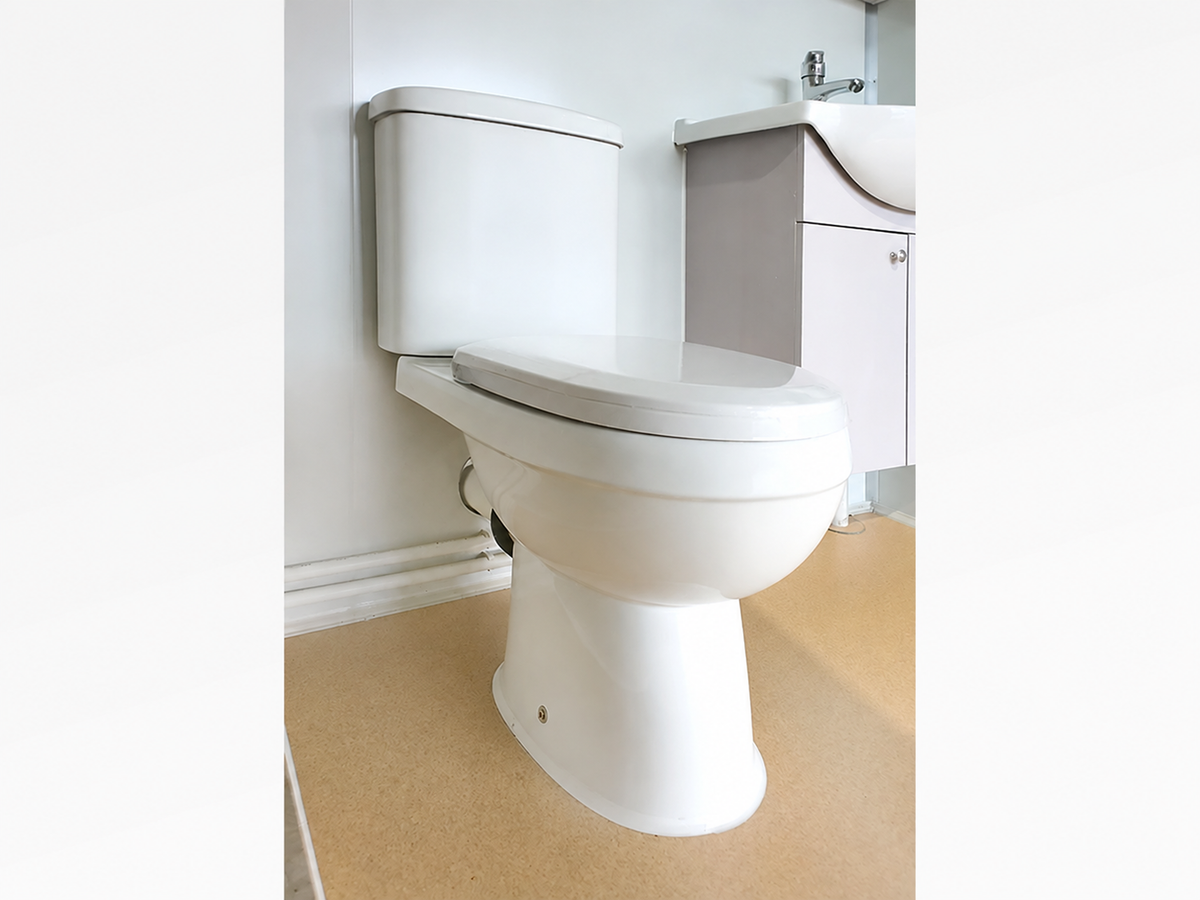

- Ceramic toilet and 550 mm cabinet basin
- Mirror cabinet and ventilation fan
- Open shower head listed without an enclosure or tray
- Window, ceiling light, switch and socket
- Factory electrical and plumbing fit-out with external connection points
- Steel frame and insulated EPS wall panels
Suitable for
- Temporary facilities where an open wet-room layout is acceptable

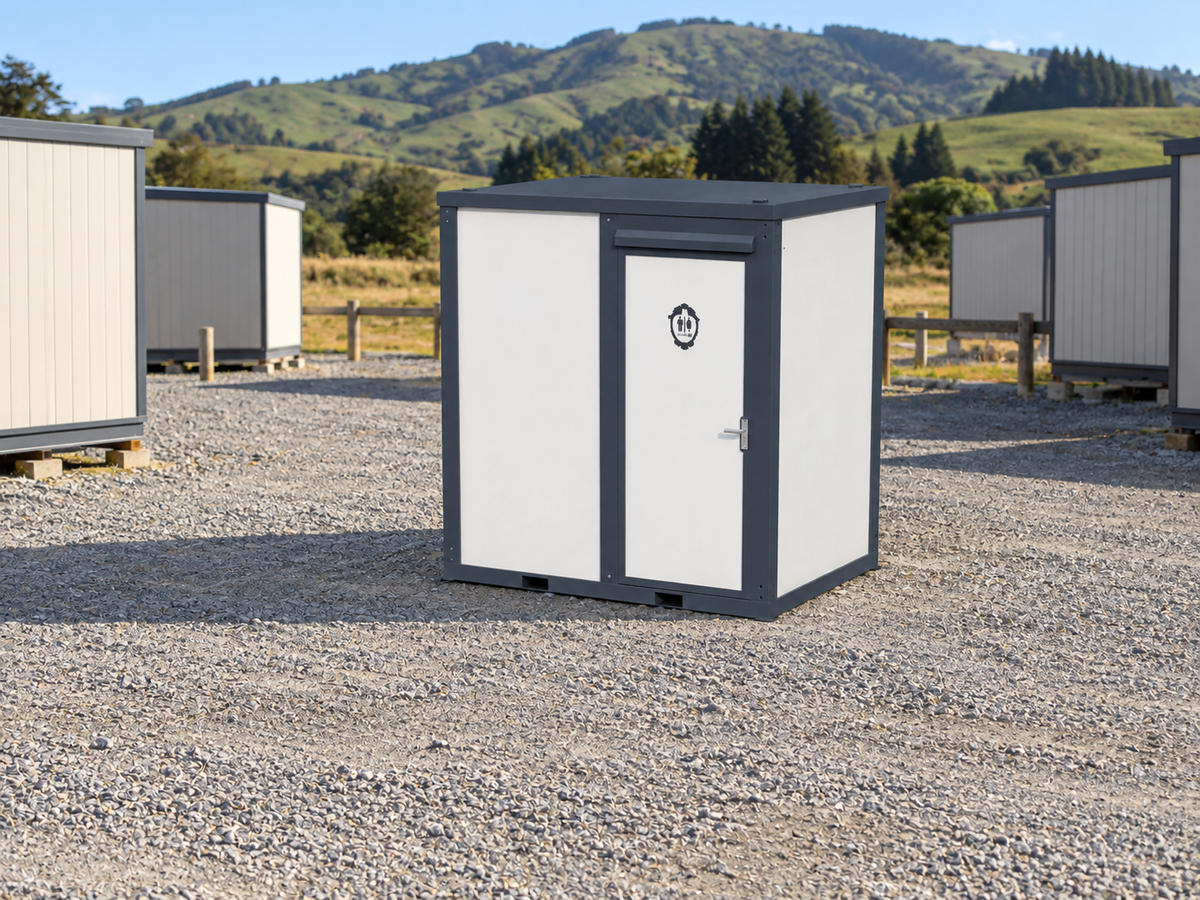

- Construction, rural and industrial sites
- Locations with external hot/cold water, drainage and power
- Projects able to confirm local wet-area and consenting requirements
Practical benefits
Three functions, one room
Toilet, handwashing and shower functions share a compact footprint.
Open wet-zone layout
No separate shower enclosure occupies floor area in the pictured configuration.
Cabinet storage
Basin and mirror cabinets add practical bathroom storage.
Specifications
- Dimensions
- 2180 mm × 1620 mm × 2354 mm
- Approx. weight
- 481 kg
- Configuration
- Toilet, cabinet basin and open shower head
- Structure
- Q235 steel frame and steel roof
- Walls
- 50 mm EPS composite panels
- Floor
- 12 mm rigid PVC sheet

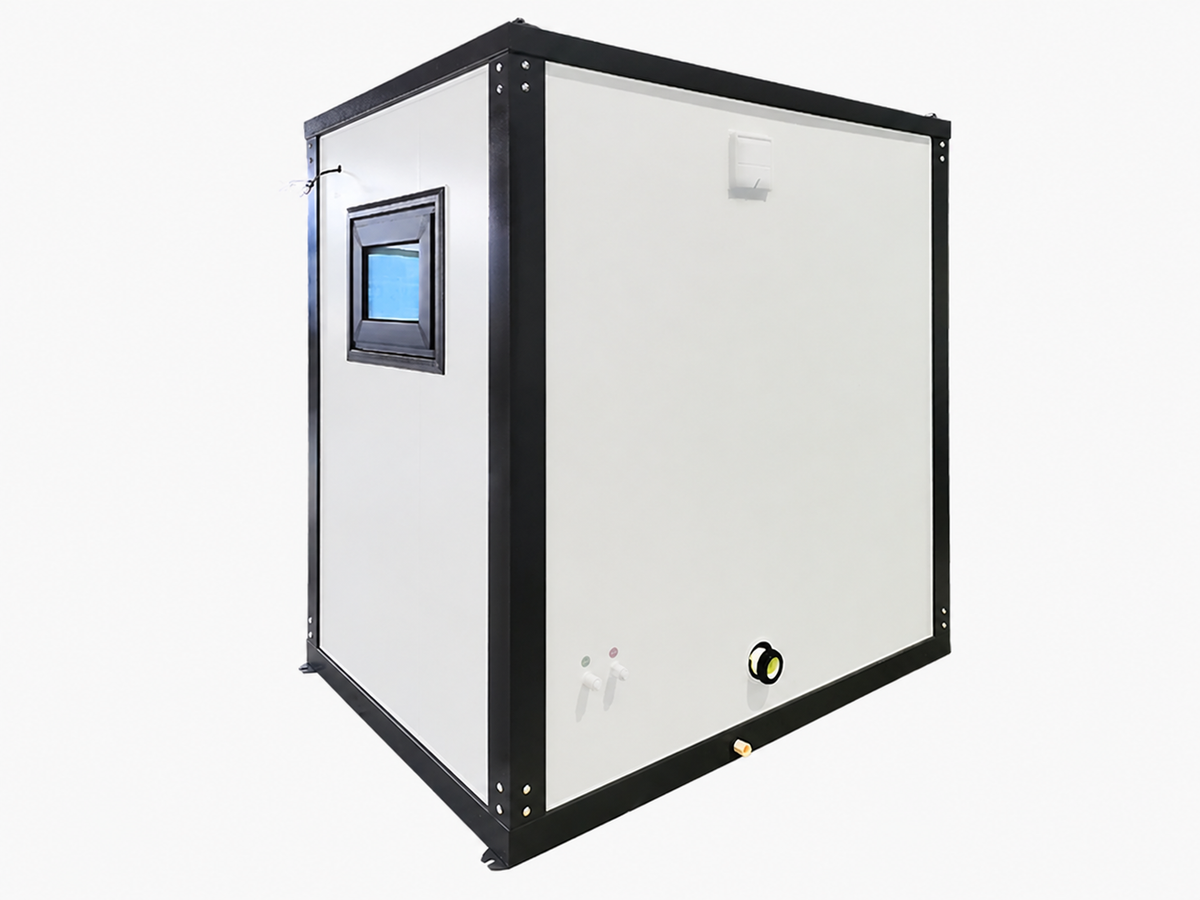

- Window
- 690 × 500 mm outward-opening aluminium window
- Water inlet
- 20 PPR pipe with 1/2-inch connection
- Drain outlets
- Ø40 drain; Ø90 toilet discharge
- Electrical

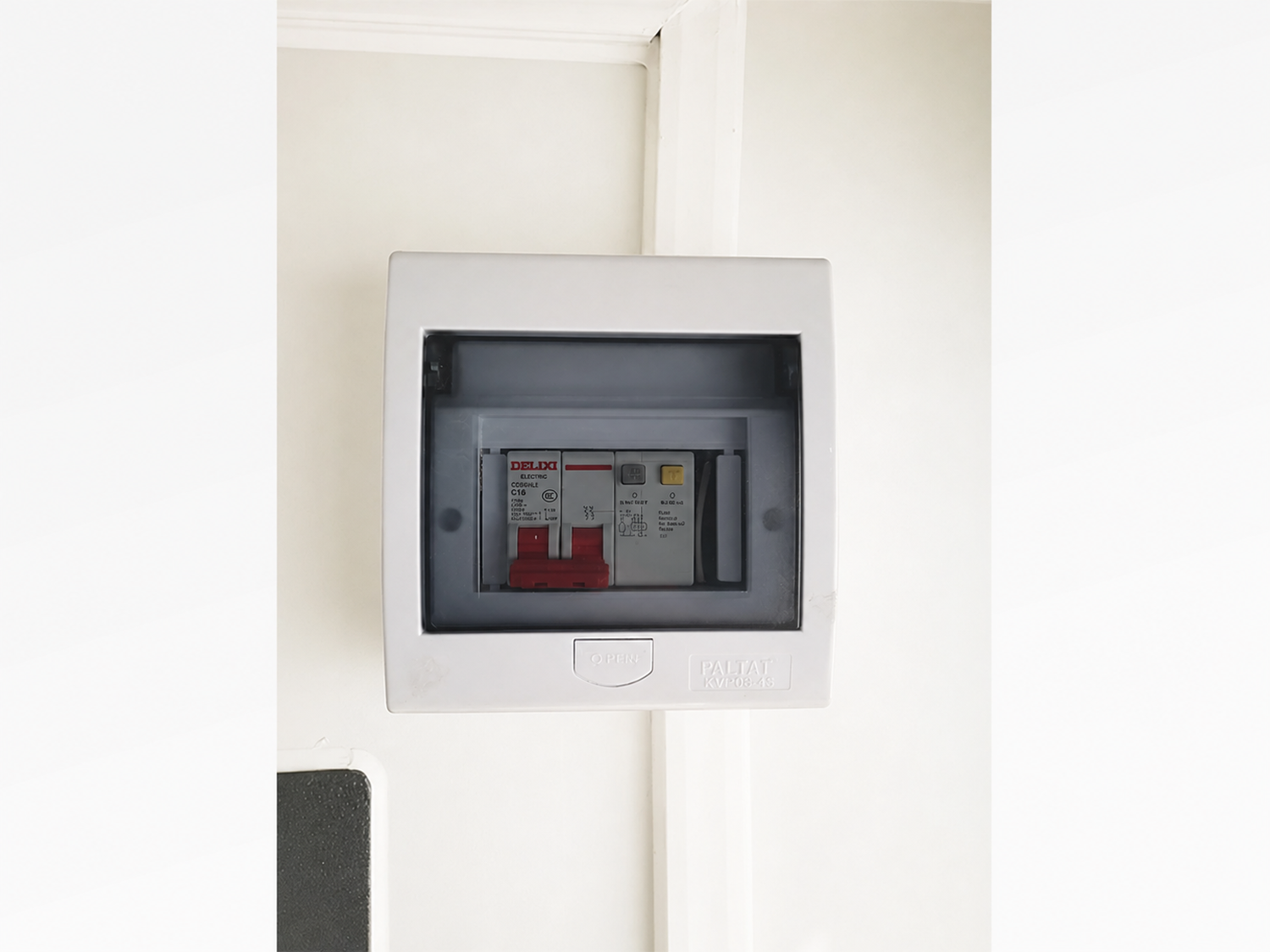

- concealed wiring, 16 A breaker, 32 A aviation socket, 18 W light, socket and fan
